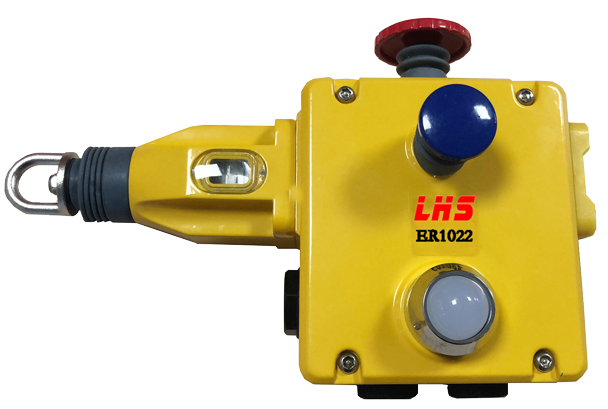

Unidirectional pull rope switch Protection distance up to 125 meters Service life up to 2 million times IP67 protection grade The device has a touch indicator Multiple contacts can meet a variety of installation requirements Aluminum alloy shell impact resistant Integrated manual reset

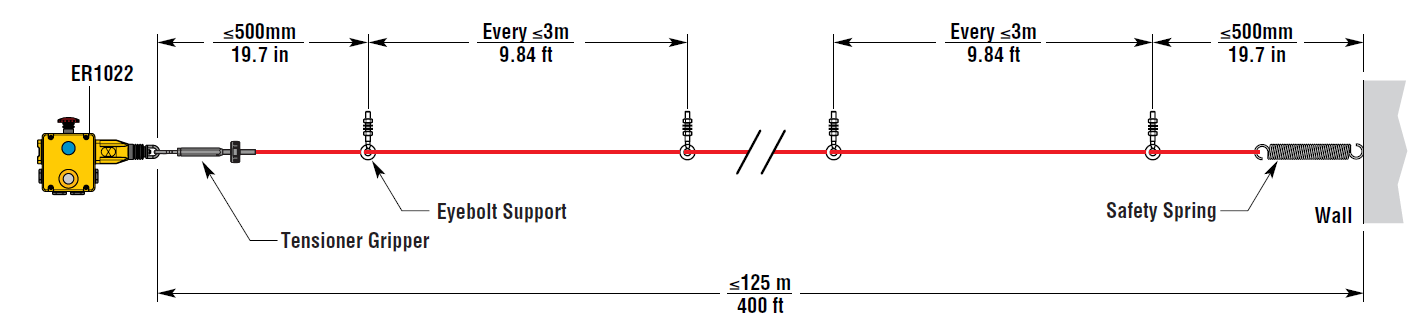

Drawstring selection

Product technical description

• The rope pull switch is an emergency stop switch. When a person finds a safety abnormality, he can quickly pull the rope within the scope of the rope and stop it urgently to protect the safety of the operator.

• The design of the rope pull switch is to keep the normal signal in the neutral position. No matter the rope is loose or the tension is locked, the equipment can be given a stop signal to prevent the product from causing serious accidents due to installation errors.

• Rope span up to 40m-200m protection range (optional)

ER1022 safety circuit design

Safety circuit module

· Universal safety circuit building module

· It is a configurable safety control module that supports multiple switch-type safety element inputs.

· Optional 3 groups-6 groups of safety element input

· Configuration software can be used to set the safety control logic to meet a variety of field application needs.
