Drawstring selection

Product technical description

• The rope pull switch is an emergency stop switch. When a person finds a safety abnormality, he can quickly pull the rope within the scope of the rope and stop it urgently to protect the safety of the operator.

• The design of the rope pull switch is to keep the normal signal in the neutral position. No matter the rope is loose or the tension is locked, the equipment can be given a stop signal to prevent the product from causing serious accidents due to installation errors.

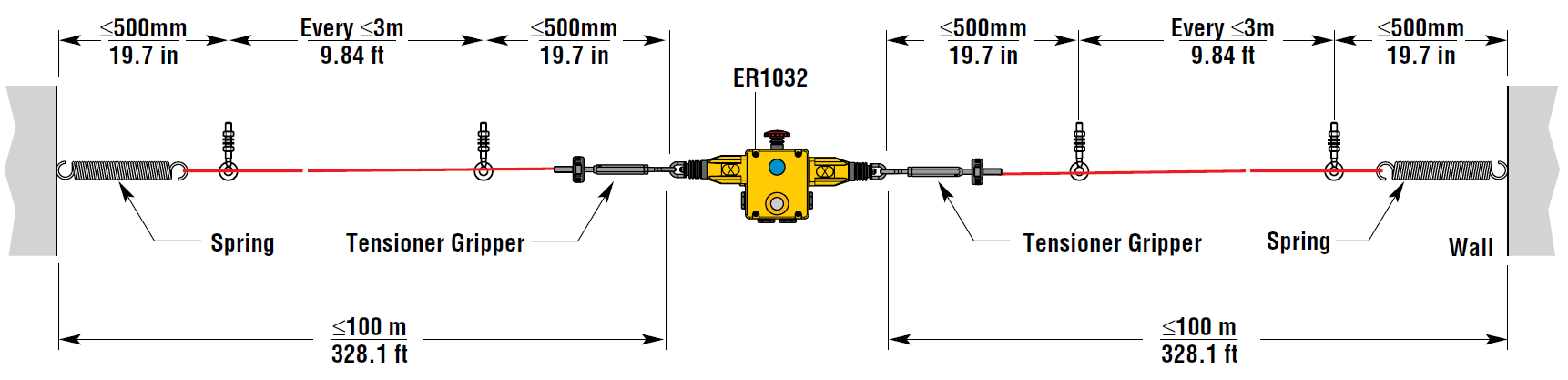

• Rope span up to 40m-200m protection range (optional)

ER1032 safety circuit design

Safety circuit module

· Universal safety circuit building module

· It is a configurable safety control module that supports multiple switch-type safety element inputs

· Optional 3 groups-6 groups of safety element input

· Configuration software can be used to set the safety control logic to meet the needs of a variety of field applications.
