AI Smart LOTO/4G intelligent automatic locking and listing

Smart LOTO: Intelligent Automatic Lockout-Tagout

Innovative Safety Technology to Eliminate Human Errors
Smart LOTO is an advanced device designed to reduce safety risks.
It aims to eliminate the most common human errors in the traditional Lockout-Tagout (LOTO) process

▊	Product Selection

Product Name	Product Model	Description	Other
Smart Lockout-Tagout(Electrical Energy) Device	LOTO-L-WiFi-V2	Electrical energy monitoring and locking	WiFi Version

▊	The problems of traditional LOTO

·TheTraditional LOTO procedures require operators to ?manually lock out the power supply after it is turned off, ensuring electrical isolation during equipment maintenance

·However, this method is highly dependent on the operator's execution. If the operator neglects to perform the lockout procedure, it may lead to the equipment being accidentally started by others, thereby causing serious safety accidents.


▊	The solution of Smart LOTO

Smart LOTO eliminates human error through automated locking mechanisms.
Post-installation, it ?retrofits traditional power switches? (compatible with EATON, Schneider, and other major brands)
Operators rotate the switch to the "OFF" position as usual, triggering Smart LOTO to ?mechanically pop up locking tabs? that secure the knob to the base—eliminating manual lock application

▊	Multiple functions of Smart LOTO

I. Automatic Locking Mechanism If no fingerprint input is detected within the specified time, the system automatically triggers a violation lock. At that time, the locking mechanism is activated, and the equipment can only be unlocked by the administrator's fingerprint. Meanwhile, the system stores the event log and uploads it to the management platform
II. Single-person Operation Process Locking Operation: After completing the fingerprint locking operation individually, the task can be started. Unlocking Process: After the task is completed, it is necessary to scan the fingerprint again to unlock. Once the fingerprint verification is successful, the push rod will automatically retract.
III. Multi-person Operation Process Locking Operation: Work can only commence after all operators have completed fingerprint scanning. Unlocking Process: After the task is completed, all personnel must re-scan their fingerprints. The equipment can only be unlocked if all identity verification information matches. Failure to verify any individual will prevent the device from unlocking. Once verification is successful, the push rod will automatically retract
IV. Administrator Unlocking Authority Administrators can unlock the equipment at any time using their fingerprint, without being restricted by the above operation procedures.
V. Data Synchronization When the system is connected to the network, it will synchronize the following information with the management platform in real time: Personnel data (Who); Fingerprint data (When); LOTO equipment number (Where).

▊	Multiple Functions of Smart LOTO

Personnel Authorization Management
Automatic Energy Lockout
Hierarchical Authorization for Unlocking
Digitalization of Work Processes with Full-Process Monitoring and Data Collection
On-Site Voice-Controlled Alarm Reminders
Directly view the status and work process via PC or APP.
Seamless Integration with Comprehensive Data Collection, Analysis, and Traceability

▊	Network topology diagram

▊	Smart Automatic Lockout-Tagout Operation Steps

Step1: Manual Button Rotation

Automatically detect the power switch in the off state.

Step 2: Authorized Fingerprint Recognition within the Specified Time

The push rod automatically extends, locks in place, and the indicator light turns yellow.

Step 3: Authorized Fingerprint Unlocking

The push rod automatically retracts, the indicator light turns red, and a countdown and voice announcement are triggered.
Reminder to reset the button.

Step 4: Button Reset

the Rotate button to reset, and the indicator light turns green.

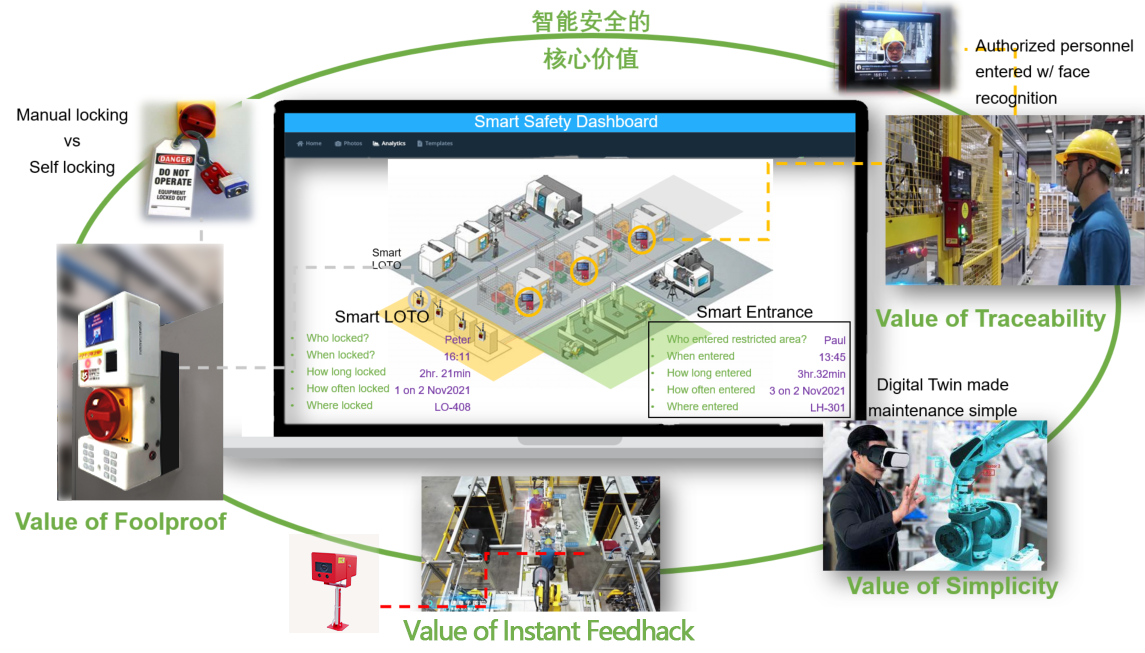

▊	Digital Management of Smart LOTO

▊	EHS Intelligent Safety Production Management System

Cloud Platform

Cloud Platform Big Data System

Applicable Environment

Equipment in production

Equipment in shutdown

Production-oriented enterprises

▊	Technical Documentation

Category	Function Name	Technical Parameters
Hardware Product	Power Supply	DC12V
	Push Rod Locking Force	60N
	Fingerprint Capacity	300人
	Network Communication	Wifi
	Antenna	2.4GHz：Built-in antenna
Protocol	Protocol Standard	IEEE 802.3/3u
Software functions	Firewall Fuction	Basic firewall function,ALG
		DMZ function，port mapping function，virtual server function
		Syslog Logging Function
		URL Filter Function
		Support for Policy-Based Routing Function
Management Platform	Software Management Platform	Device data upload, analysis, and storage
		Real-time alerts and alarms
		Provides https interface，mobile APP，Ipad interface,etc.

AI Smart LOTO/Intelligent Automatic LOTO Electrical Energy

AIBOX Intelligent Safety Electromagnetic Door Lock

AI Early Warning Eye/Intelligent Anti-Tailgating Early Warning Eye

EHS Smart Safety Production Management Platform


Maintenance personnel authorization management
Automatic locking of electrical energy
Automatic identification of electrical energy status
Personnel authorization for locking/unlocking
Automatic alarm function

Personnel authorization for entry/exit
Automatic LOTO (Lockout-Tagout) locking and tagging function
Industrial safety door lock function
Emergency stop function
Reset function

Identification of the number of people in hazardous areas
Identification of authorized personnel in hazardous areas
Alarm function for unauthorized personnel identification
Full-process tracking within the area
Safety locking function
Hierarchical alarm cancellation function

Equipment management
Risk assessment
Work management
Behavior management
Authorization management
Statistical analysis and management

▊	Intelligent locking and tagging device, system and method
